Hakros PolyObject Editor

Hi everyone.

Hakros PolyObject Editor is a Windows desktop tool that forges working polyobject doors into Doom maps saved in UDMF format. You mark a gap sector in your map (the hole the door should fill), pick how it should move, and the editor builds the whole polyobject closet for you, the one-sided void, the start line, the anchor and spawn things, the movement special and the activation, without hand-editing linedef arguments in Ultimate Doom Builder.

The tool reads a .wad file, finds its UDMF map, lets you choose the door gap by its Tag, previews the result from a top-down view, warns you about the common mistakes, and then writes a complete, ready-to-run polyobject. It always saves a timestamped backup of the original .wad before writing any change.

Discord Community
https://www.hakros.com/discord/

This software requires .NET Core 8.0, you can find it here
https://dotnet.microsoft.com/en-us/download/dotnet/8.0

How it works ?

• Opens any WAD and lists every UDMF map it contains.
• Resolves the door gap by the Tag you see in Ultimate Doom Builder; you can also right-click a sector in the preview to select it.
• Builds single doors or double doors (two leaves that mirror each other from one trigger).
• Supports five movements: Slide, Swing, Rotate right, Rotate left and Spin (continuous).
• Lets the door auto-close (with an adjustable delay) or stay open.
• Picks the activation: player/monster use, bump (push), projectile impact, or walk-over (cross).
• Drives the door from its own faces or from a separate tagged line you cross.
• Shows a live top-down preview with the movement direction, the hinge and the swing/spin arc.
• Runs live warnings (size mismatch, slide overlap, non-adjacent double leaves, walk-over needing a trigger line, duplicate polyobject number).
• Bakes a custom door sound into a ready-to-use .pk3 (SNDINFO + SNDSEQ) next to your WAD.
• Saves the map back into the .wad, after creating a timestamped backup.
• Switches theme (Dark / Light) and language (English / Español) at runtime.

Concepts you need to know

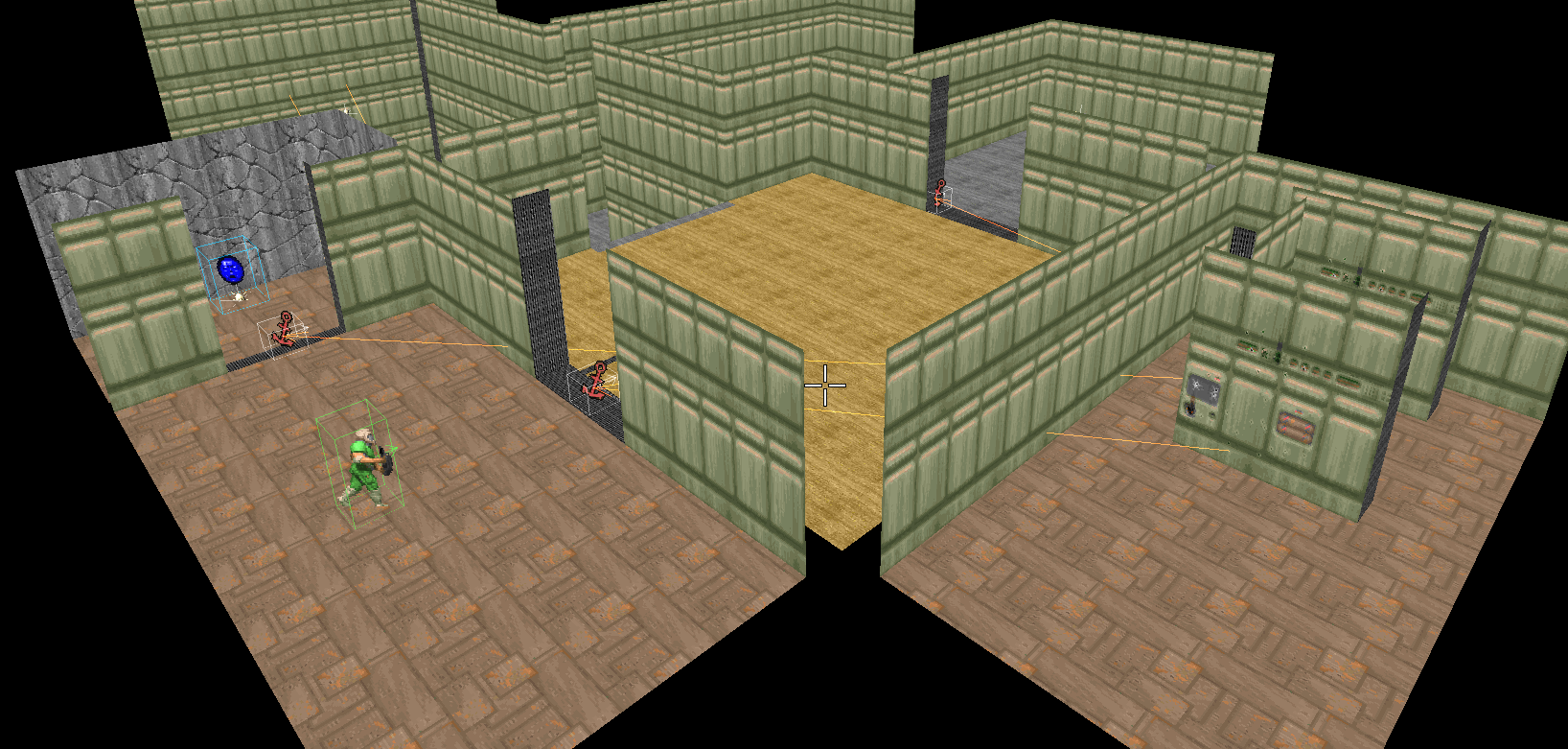

What a polyobject is

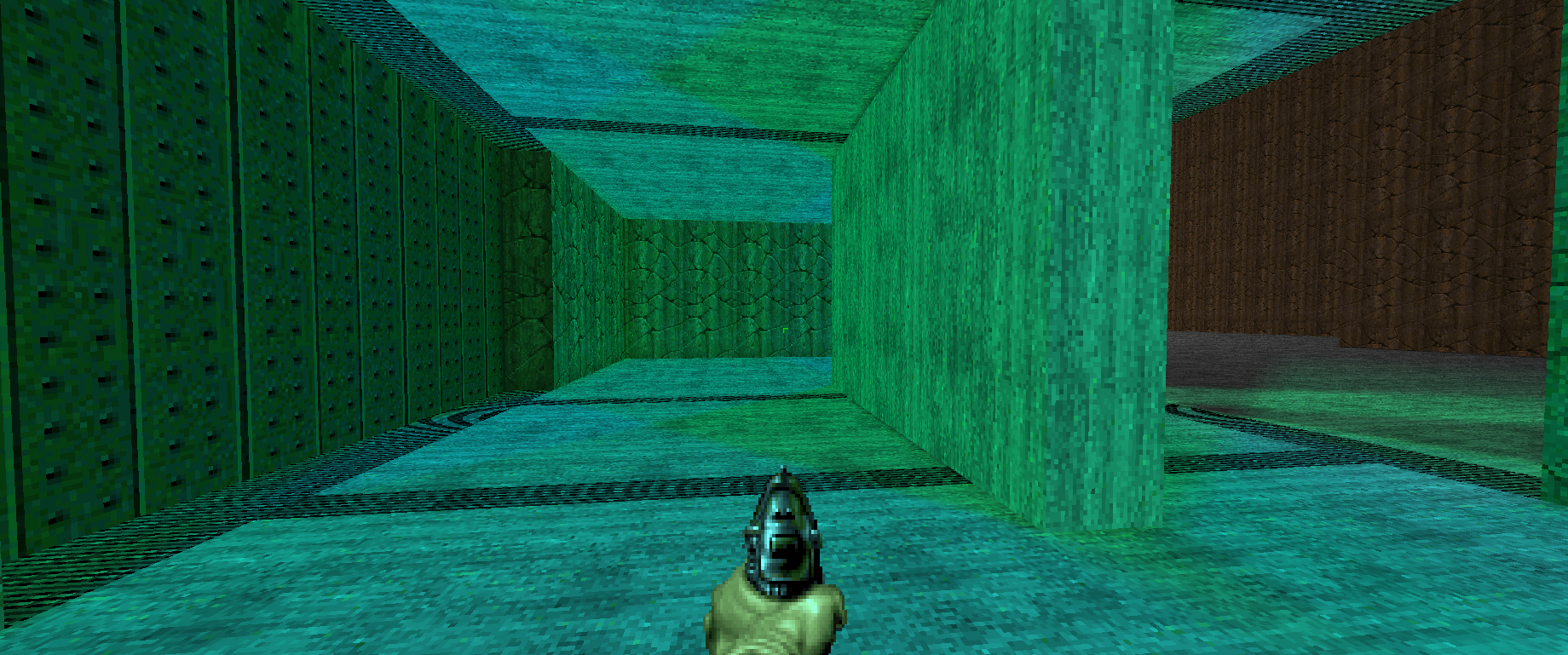

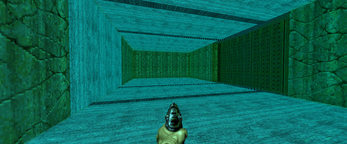

A polyobject is a small cluster of one-sided linedefs that the engine can move and rotate as one rigid piece while the rest of the level stays still. It is a Hexen-era addition to the Doom engine (originally written by Ben Gokey at Raven Software) that gave mappers sliding and swinging doors, rotating machinery, horizontal crushers and pushable secret walls, motion the classic engine could not do on its own.

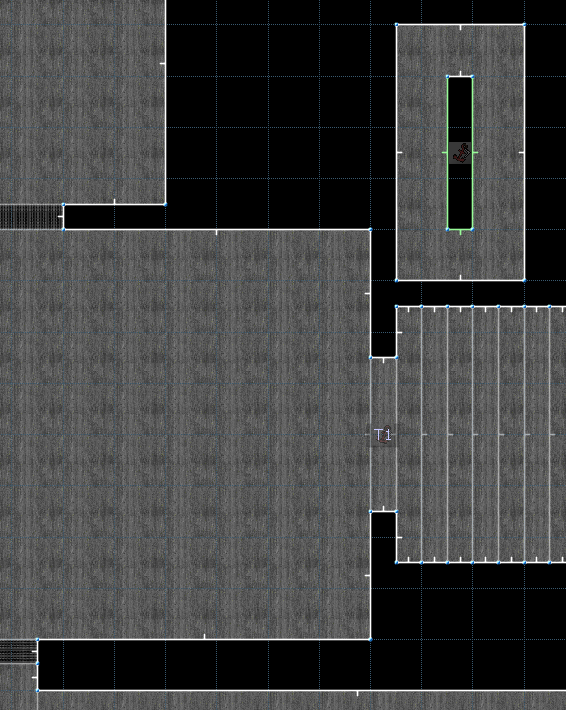

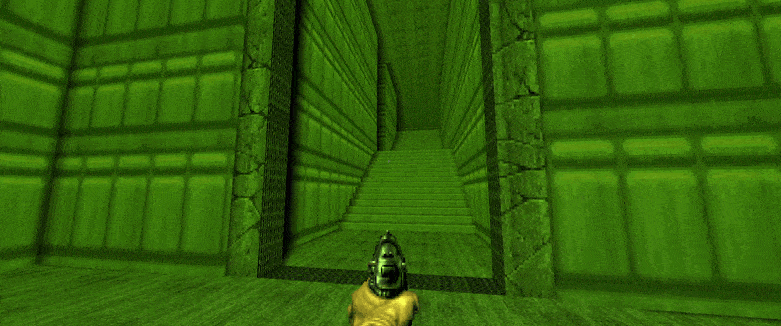

Why polyobjects live "off the map"

Doom renders through a precomputed BSP tree, which assumes the level geometry never moves. Polyobjects work around that by following a few rules: a polyobject must stay convex, must fit inside a single subsector, and must never overlap static geometry or another polyobject. To respect those rules, the moving piece is built in an empty pocket beyond the playable area (a "closet") and then teleported into place at runtime. The editor does this for you automatically.

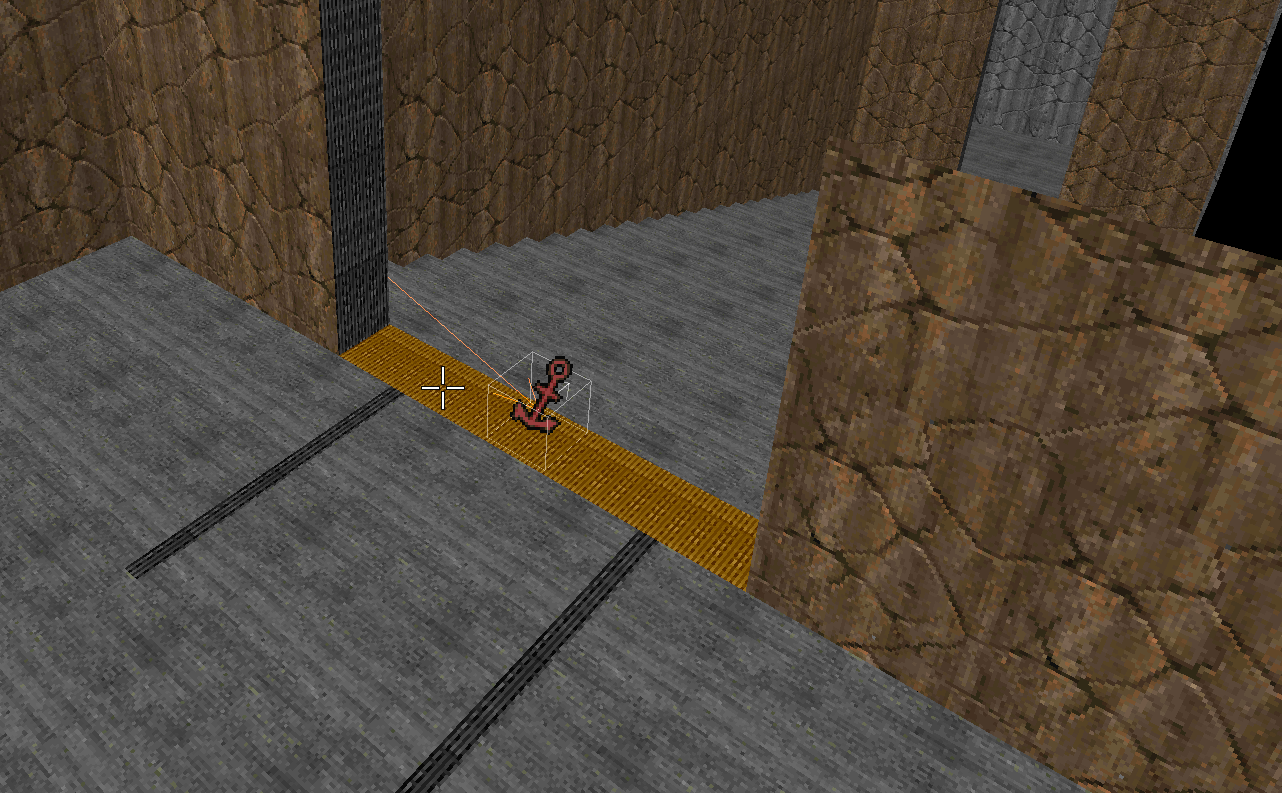

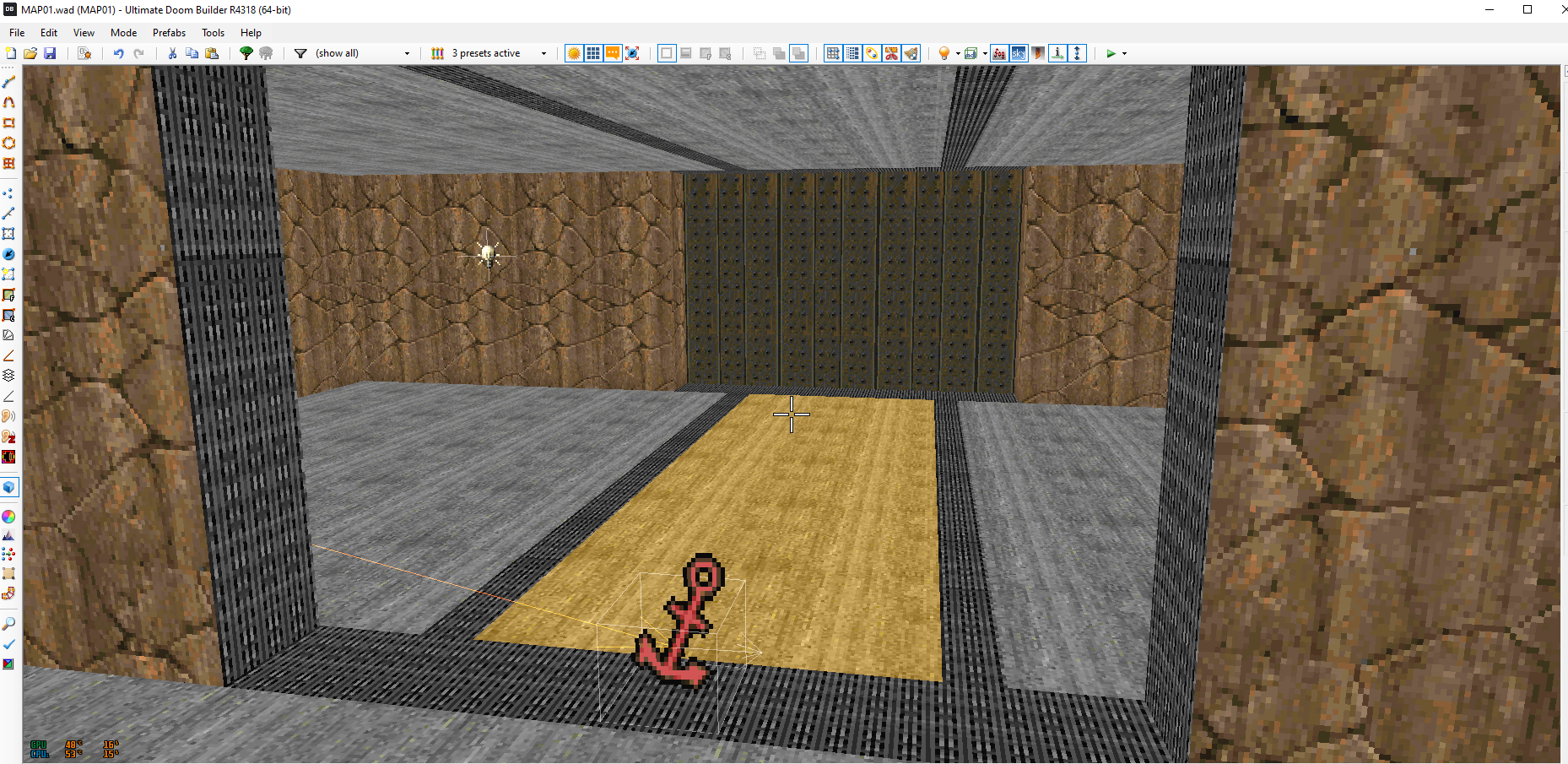

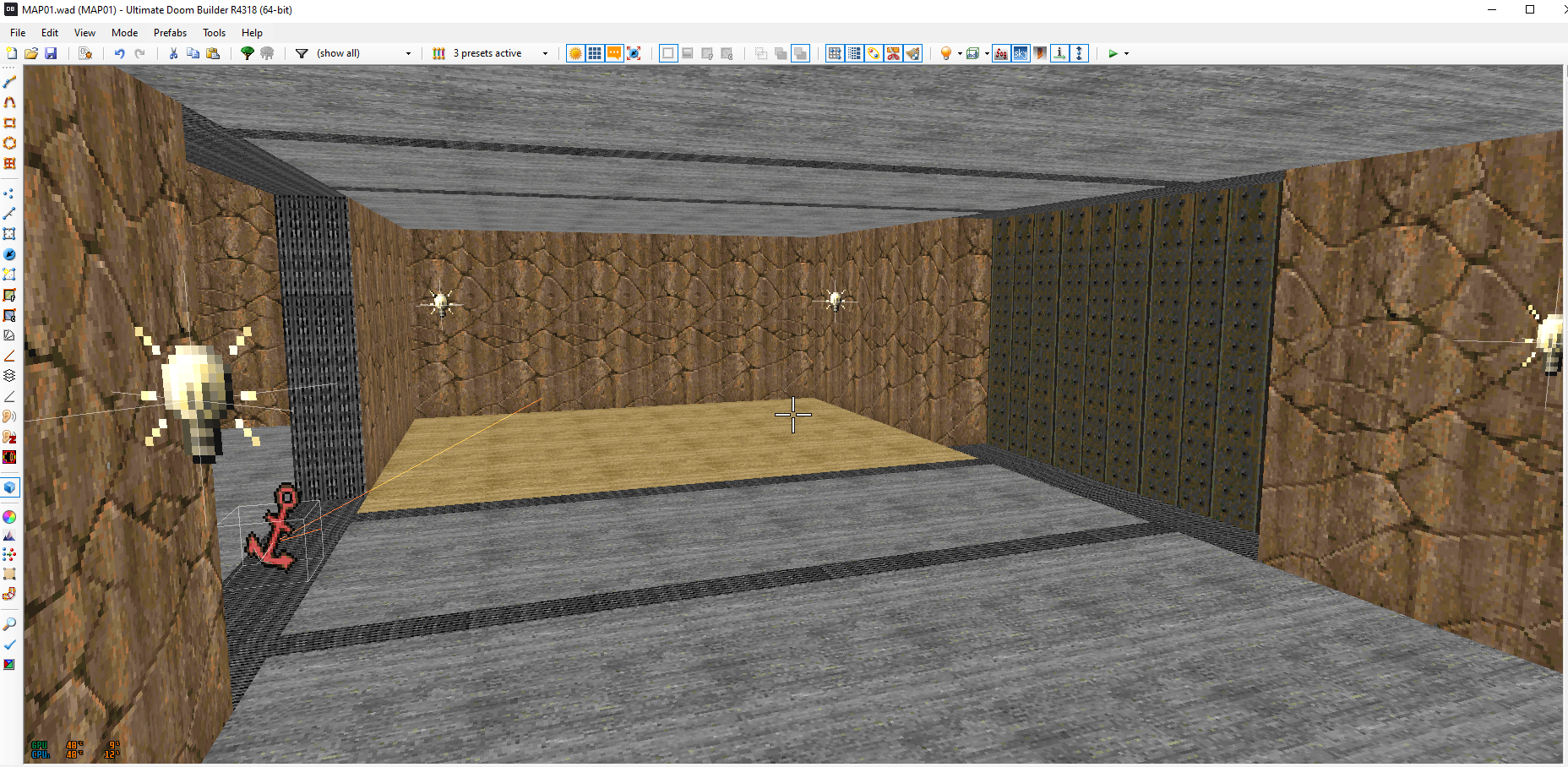

Anchor and spawn spot

Two special things tell the engine where the polyobject is and where it should appear:

• the anchor point is placed next to the lines that make up the object, in the closet;
• the spawn spot marks the runtime position in your map.

At load time the engine slides the whole object so the anchor lands on the spawn spot, keeping every linedef in the same relative position. The matching number that ties the lines, the anchor and the spawn spot together is stored in their angle field (a quirk inherited from Hexen).

Start line

One edge of the polyobject carries Polyobj_StartLine, which identifies the group of lines as a single object and assigns its number and (for double doors) its mirror partner. The editor writes this line for you.

Map-format note: classic Hexen-format maps cap out at 256 polyobjects; UDMF/GZDoom is far more generous, but the byte-angle conventions for movement directions are inherited from that era (see below).

Tag

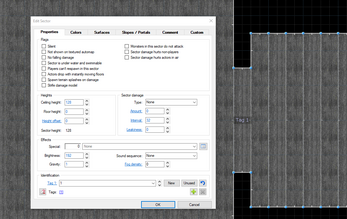

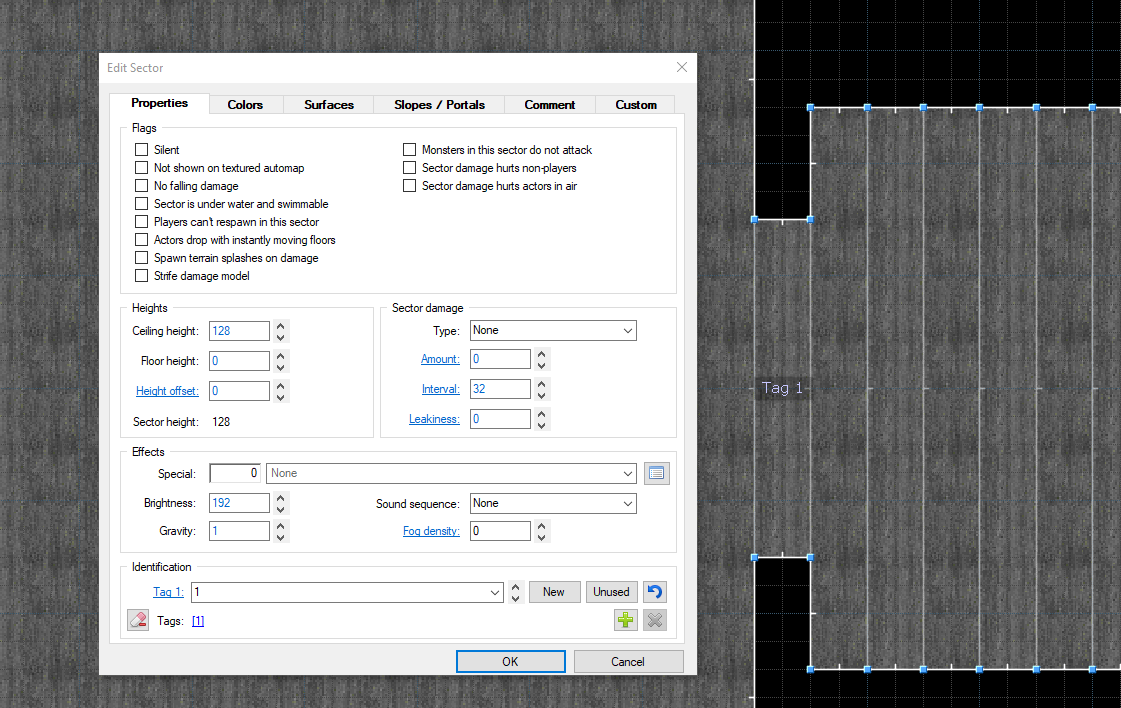

In Ultimate Doom Builder, sectors carry an identifier (the UDMF id/Tag). The editor finds the door gap by its Tag, the number floating on the sector in UDB. If a gap is split into two leaves for a double door, each leaf has its own Tag.

----

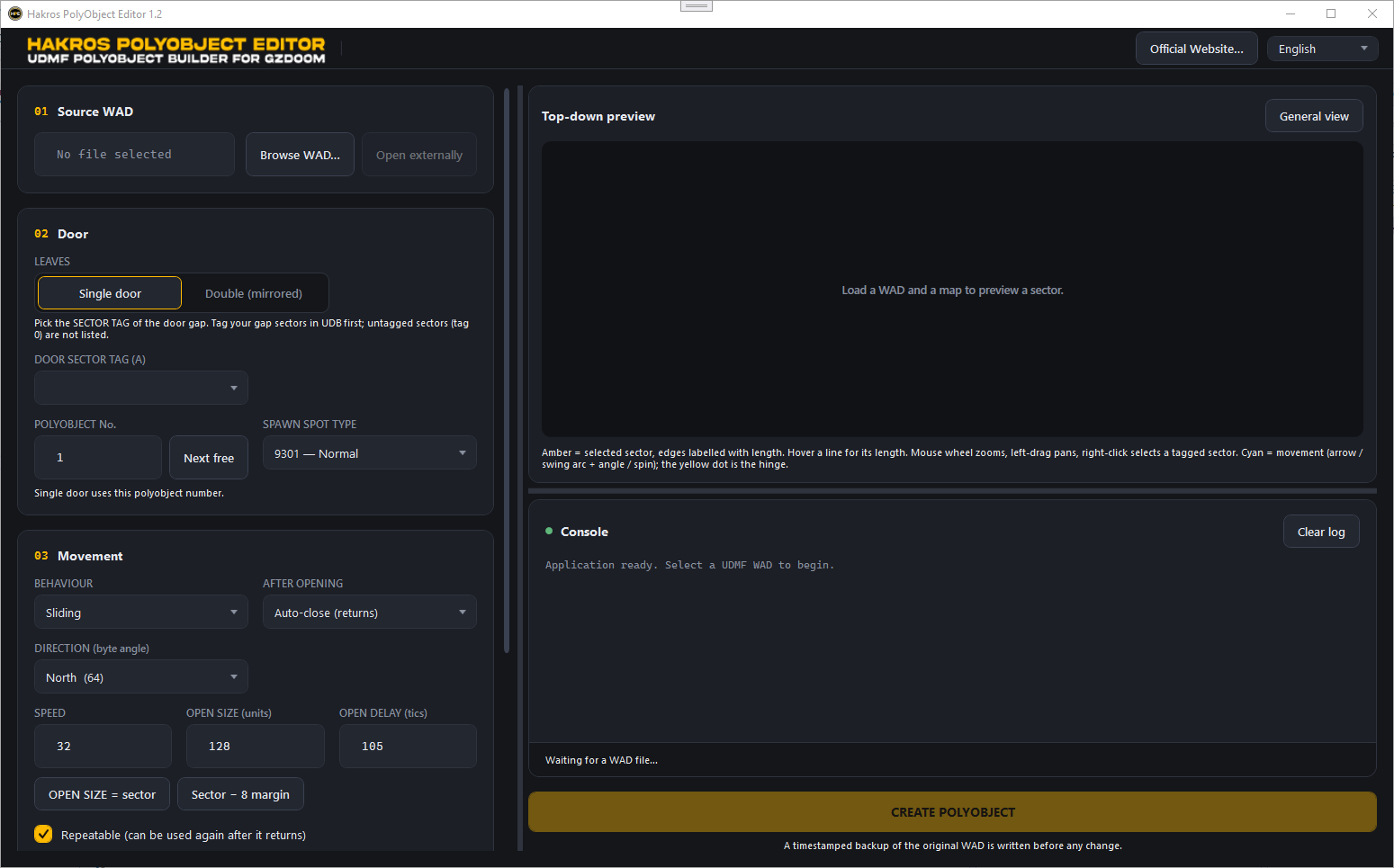

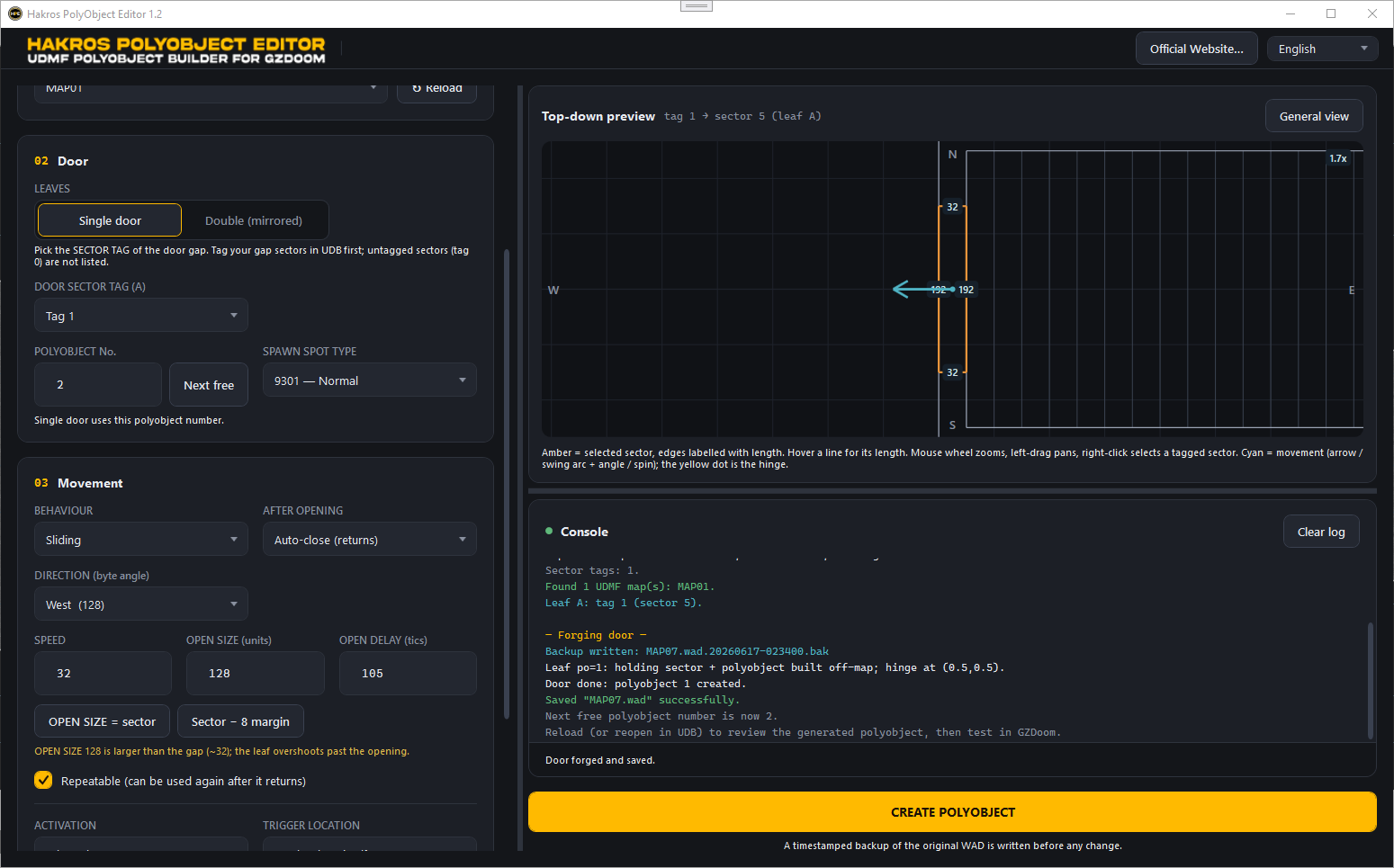

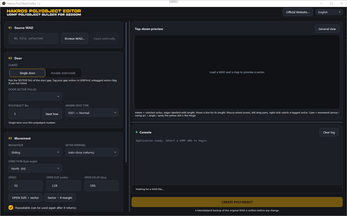

The interface

The window is split into a configuration column on the left, a top-down preview and an activity console on the right, and a footer with the main action button. Theme and language selectors sit in the top-right corner.

1 · Source WAD

Pick the .wad you want to edit with Browse…. The tool validates the file and reports how many UDMF maps it found. Choose the target map from the dropdown; the readout shows the namespace and the vertex / linedef / sector / thing counts. Open externally hands the file to your system's default app.

2 · Door

• Single / Double — one leaf, or two leaves that mirror each other.
• Sector A (and Sector B for a double) — the Tag of the gap each leaf should fill. You can also right-click the sector in the preview.
• PolyObj number — the identifier for this door. Next free fills the lowest unused number.
• Spawn type — Normal, Crushing or Hurts (a leaf that damages whatever blocks it).

3 · Movement

• Behaviour — Sliding, Swinging, Rotate right, Rotate left or Rotating (spin).
• After opening — Auto-close (then waits the delay and returns) or Stay open.
• Direction (slide) — the compass direction the leaf travels, as a byte angle.
• Hinge (swing / rotate) — the pivot the leaf turns around (centre, a corner or an edge of the gap).
• Speed, Open size / angle, Open delay.
• Angle in degrees (0–360°) — type the swing/rotate angle in degrees and let the tool convert it to a byte angle.
• Swing clockwise / right — swings the leaf the other way (stays open; see notes).
• Full size / Size minus margin — quick buttons that measure the gap and fill the slide distance.
• Repeatable, Activation, Trigger location (the door itself or a separate tagged line).

A short help line explains how the hinge and angle work together for swing and rotate.

4 · Sound

• Sound sequence — the numeric SNDSEQ slot the door plays.
• Choose sound file… / Make PK3 — pick a .wav, .ogg, .flac, .mp3 or .opus and the tool bakes a .pk3 next to your WAD that maps your file to the door's sound slot.

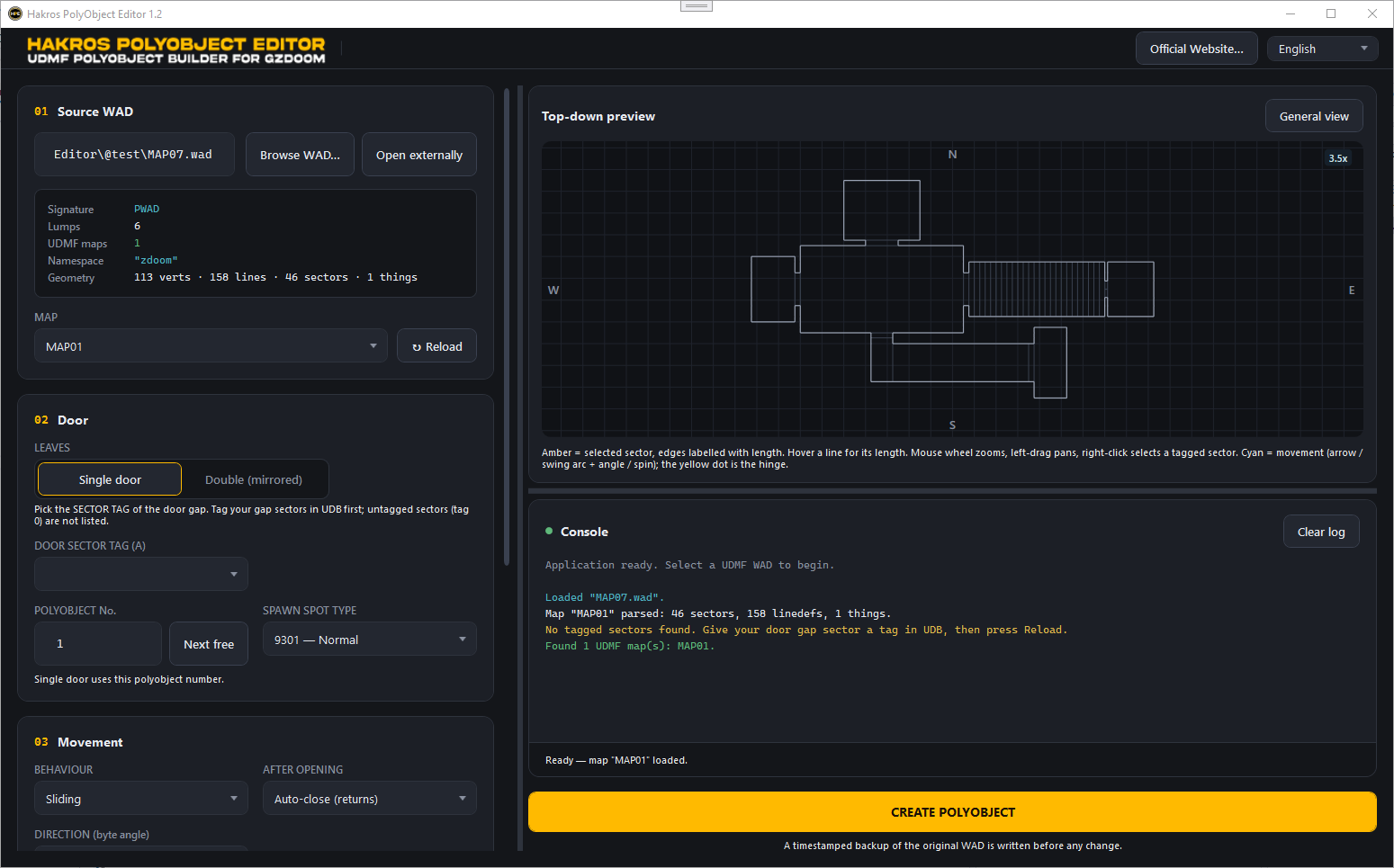

Preview

A live top-down view of the chosen gap: edges labelled with their length, the movement direction arrow (slide), the swing/rotation arc with its angle, and the yellow hinge dot. Mouse-wheel zooms, left-drag pans, right-click selects a tagged sector. General view shows the whole map.

Console

Every action, check result and error is timestamped and colour-coded (info / success / warning / error). Use Clear log to reset it.

Footer

Official Website… opens the project page; Forge door & save WAD builds the door and writes the file. The note reminds you that a backup is made automatically first

----

Step-by-step: forging a door

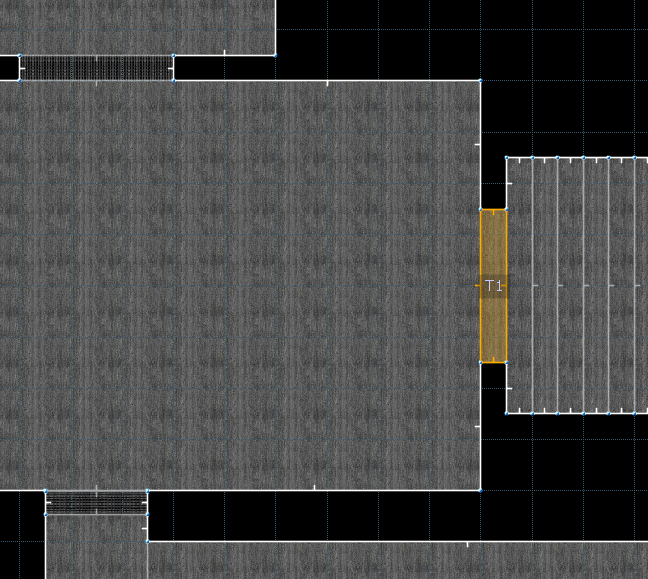

1. Prepare the geometry in UDB. Carve the opening where the door belongs and make it its own sector (the "gap"). Give that sector a Tag. For a double door, split the opening into two sectors and tag each. Save the map as UDMF.
2. Open the WAD. Launch Hakros PolyObject Editor, click Browse…, select your .wad, and pick the map.
3. Pick the gap. Choose Single or Double, then select the gap Tag(s), by dropdown, or by right-clicking the sector in the preview.
4. Set the polyobject. Leave the PolyObj number on the suggested free value, choose a spawn type, and (optionally) a sound sequence.
5. Choose the movement. Pick a behaviour and its options (direction or hinge, speed, open size or angle, delay). Watch the preview update.
6. Choose activation. Decide who opens it and whether it triggers from the door itself or a separate crossed line.
7. (Optional) Bake a sound. Pick a sound file and click Make PK3.
8. Read the warnings. Resolve anything flagged in the console (see below).
9. Forge. Click Forge door & save WAD and confirm. The tool backs up the original, builds the polyobject closet, and saves the WAD.

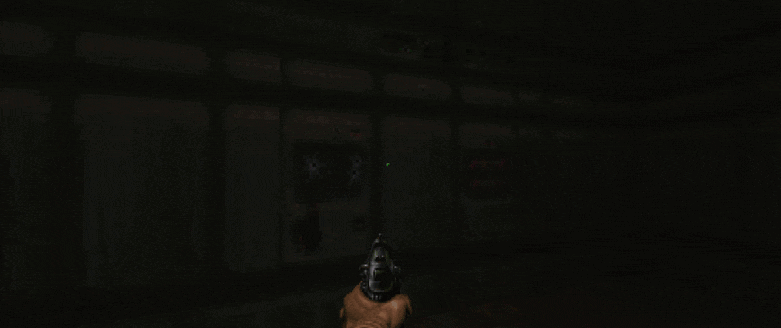

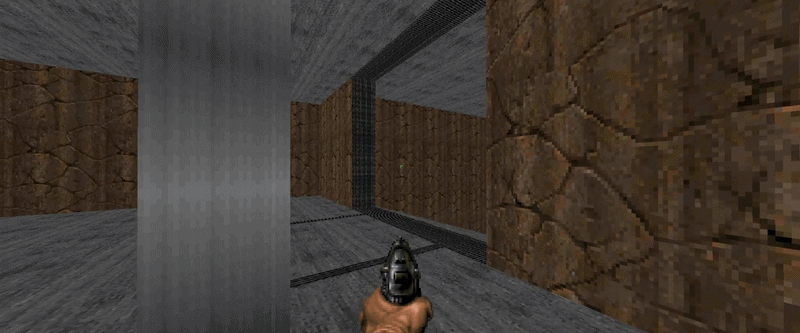

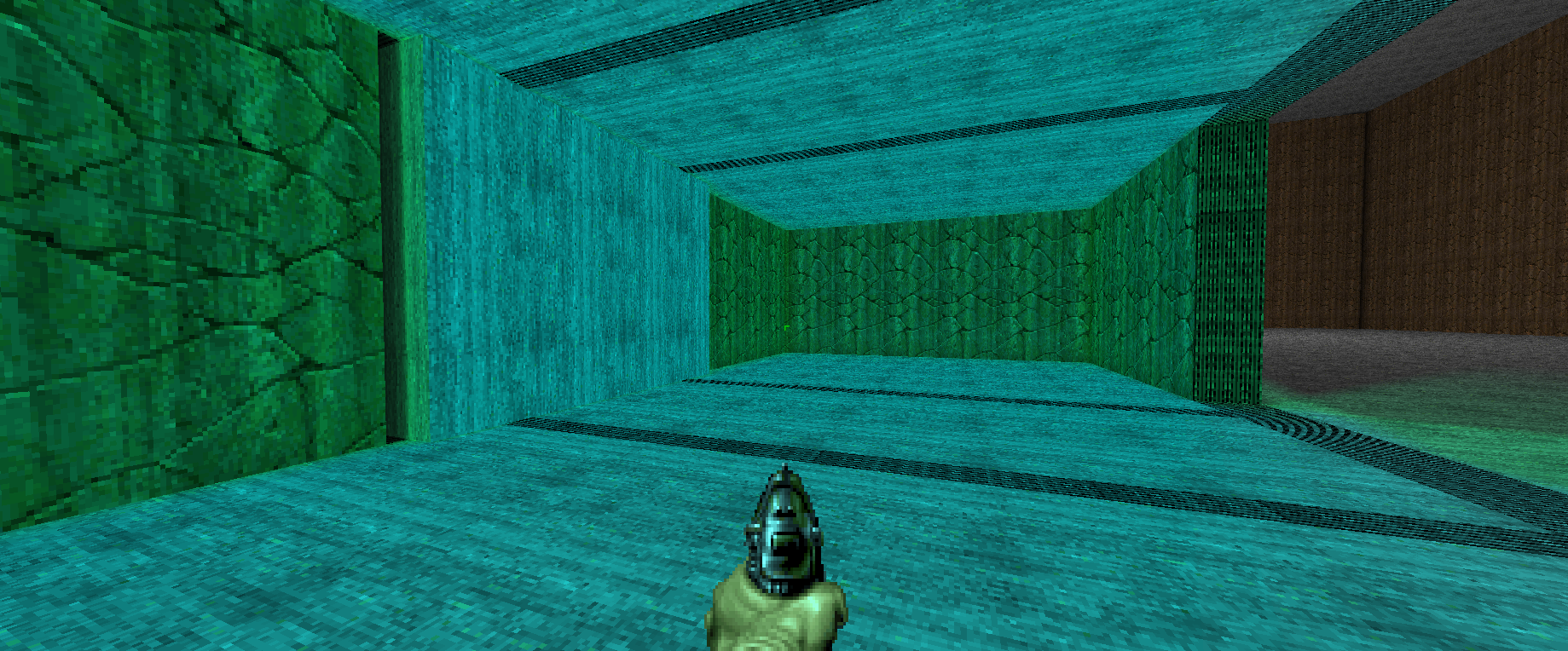

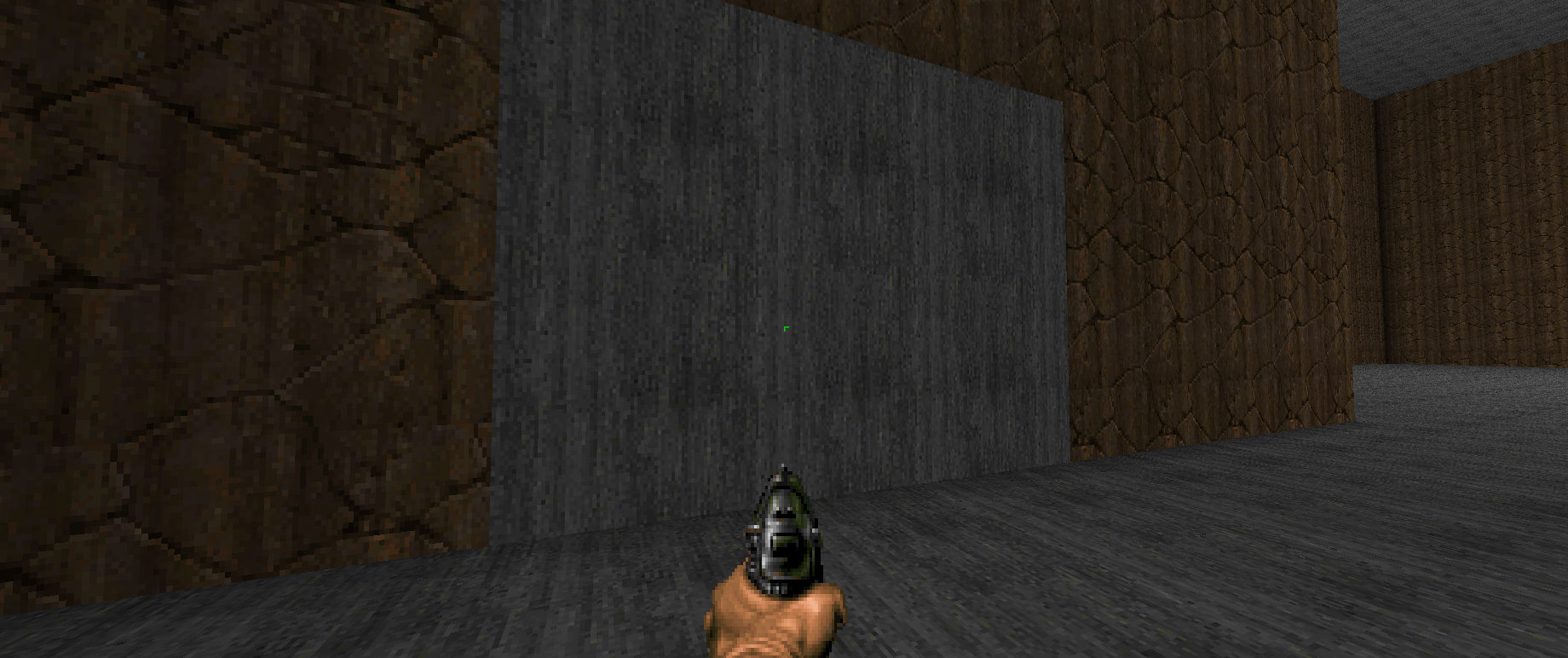

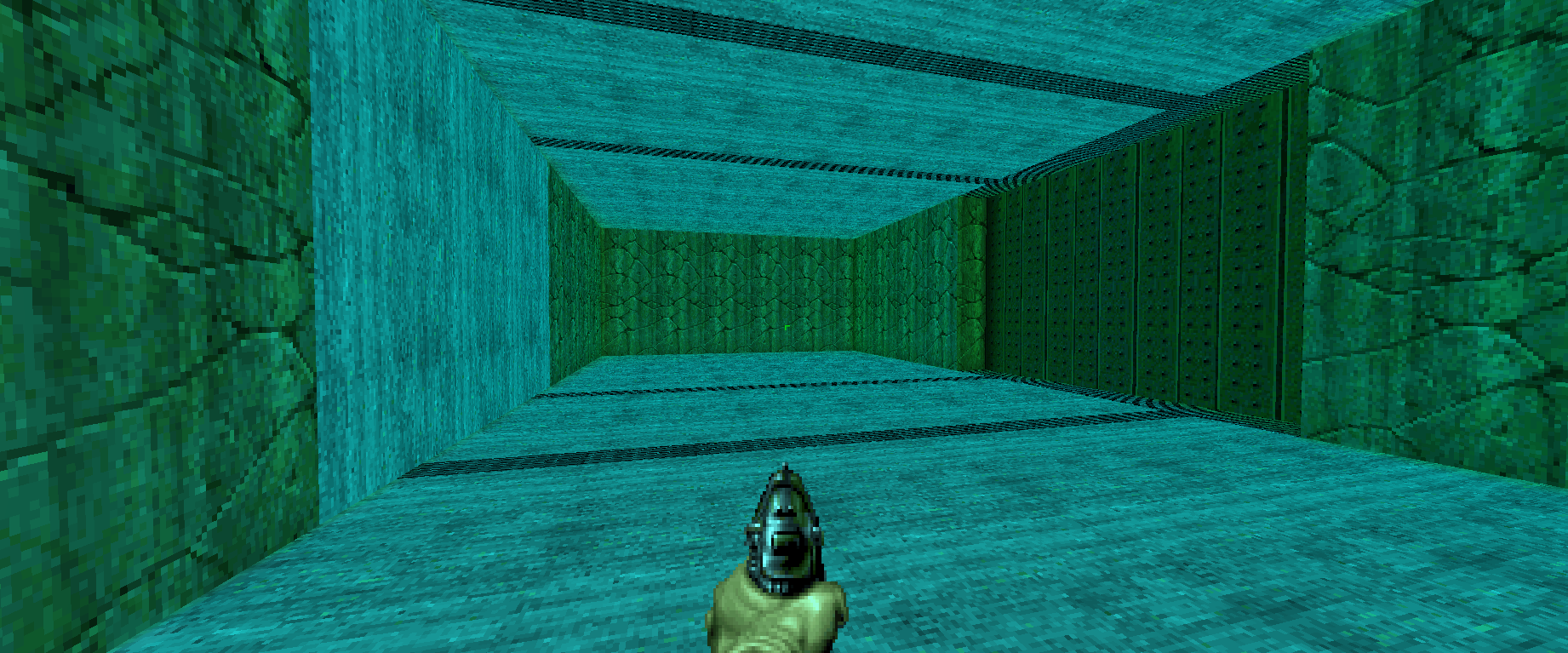

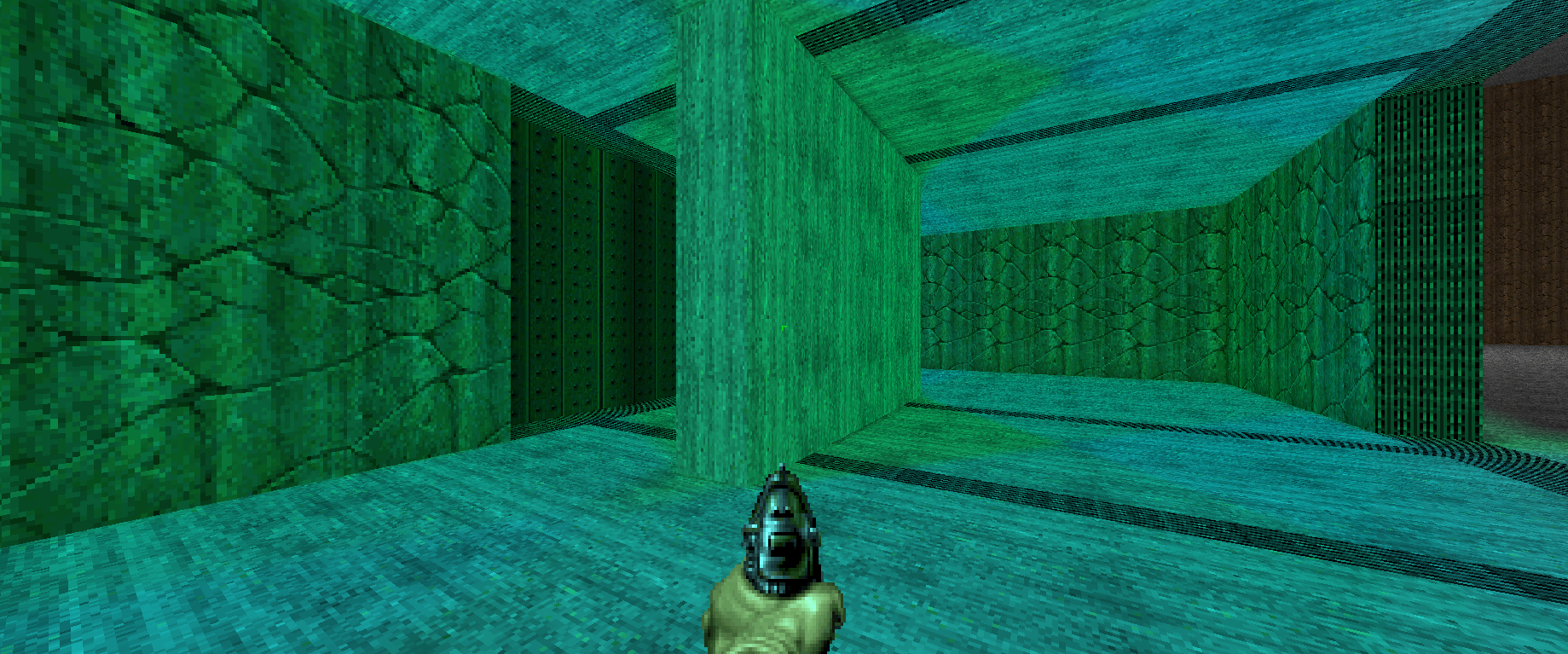

10. Test in GZDoom. Load the map (plus the .pk3 if you made one) and try the door.

Live checks explained

• Open-size mismatch — for a sliding door, the open distance is compared against the measured gap; a value that is too small leaves the door ajar, too large overshoots the opening.
• Slide overlap — warns when a leaf slides toward a neighbour that is the same width or narrower, so the moving leaf would clip into it.
• Double-leaf adjacency — a double door normally meets in the middle; the tool tells you when the two leaves do not share an edge.
• Walk-over needs a line — walk-over (cross) activations only fire on a line you actually cross, so the tool warns you to set Trigger location to a separate tagged line.
• Number already used — refuses to reuse a polyobject number, since a duplicate makes one door pick the wrong position.

None of these block creation except a duplicate number; the rest are advisory.

Movement reference

Behaviour	After opening	Line special used	Direction	Notes
Slide	Auto-close	Polyobj_DoorSlide (8)	byte angle	Opens, waits, returns
Slide	Stay open	Polyobj_Move (4)	byte angle	Opens once
Swing (left)	Auto-close	Polyobj_DoorSwing (7)	CCW	Opens, waits, returns
Swing (left)	Stay open	Polyobj_RotateLeft (2)	CCW	Turns by the angle and stays
Swing (right)	Stay open	Polyobj_RotateRight (3)	CW	A clockwise swing can't auto-close
Rotate right	—	Polyobj_RotateRight (3)	CW	Turns by the angle; 255 = continuous
Rotate left	—	Polyobj_RotateLeft (2)	CCW	Turns by the angle; 255 = continuous
Rotating (spin)	—	Polyobj_RotateRight (3)	CW	Never stops (angle 255)

Movement directions use byte angles (0 = East, 64 = North, 128 = West, 192 = South). Swing/rotate angles are also byte angles where 64 ≈ 90°, 128 ≈ 180° and 255 ≈ a full turn; the Angle in degrees option lets you type 0–360° and converts for you.

Activation reference

Activation	UDMF flag	When it fires
Player use	playeruse	The player presses use on the door
Player bump	playerpush	The player walks into the door
Monster use	monsteruse	A monster presses use
Monster bump	monsterpush	A monster walks into the door
Projectile impact	impact	A projectile hits the door
Player walk-over	playercross	The player crosses a trigger line
Monster walk-over	monstercross	A monster crosses a trigger line

Walk-over activations require a separate trigger line you cross — they do nothing on the door's own faces. Repeatable adds repeatspecial so the door can be used again after it returns.

Custom door sound (PK3)

The Make PK3 button turns any sound file into a drop-in mod next to your WAD. It packs:

• your audio under sounds/,
• a SNDINFO entry that names the sound,
• a SNDSEQ block that assigns it to the numeric door slot you chose in Sound sequence.

Run the game with both files, e.g.:

gzdoom -file yourmap.wad yourmap_seqN.pk3

and the door plays your sound. The slot number in the PK3 must match the Sound sequence value on the door.

How the door is built (technical notes)

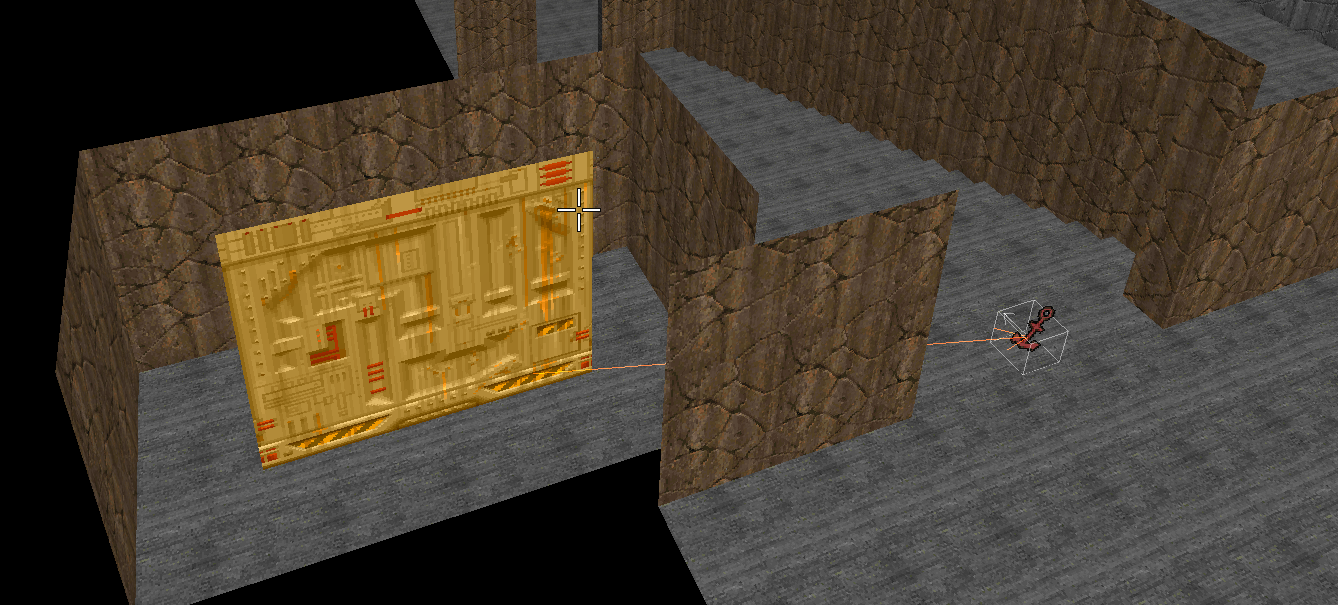

For each leaf, the editor works in an empty area beyond the current map bounds and writes:

• a holding sector (the closet), with floor/ceiling heights and textures copied from the gap;
• the polyobject itself, a one-sided void rectangle the size of the gap;
• Polyobj_StartLine (special 1) on one edge — arg0 = polyobject number, arg1 = mirror partner, arg2 = sound slot;
• the movement special on the faces that meet your existing rooms (detected from the real map geometry, so deep doors get their interaction lines on the correct sides);
• an anchor thing (type 9300) in the closet and a spawn spot (9301 normal / 9302 crushing / 9303 hurts) in the map, both tied to the polyobject number through their angle field.

Double doors are linked through the StartLine mirror argument, so a single activation drives both leaves in opposite directions. The hinge you pick places the spawn spot (the rotation centre) at that point of the gap.

The WAD is parsed in memory (12-byte header, 16-byte directory entries), the UDMF TEXTMAP lump is edited while preserving element order so existing index-based references stay valid, and the file is rebuilt with a recomputed directory on save.

Language

Use the Language dropdown in the top-right to switch between English and Español. The entire interface updates instantly, and new log messages appear in the selected language.

English is the default. Available languages: ENGLISH and SPANISH

Backups and safety

Before any change is written to disk, the editor copies the original file to a timestamped backup:

<name>.wad.yyyyMMdd-HHmmss.bak

in the same folder as the original. If writing fails for any reason, the log points you to the backup that still holds the untouched original. If a configuration value is invalid, nothing on disk is modified.

Troubleshooting

Symptom	Likely cause / fix
"No UDMF (TEXTMAP) map found."	The map is in classic binary format. Re-save it as UDMF in Ultimate Doom Builder.
"Could not find a sector with tag N…"	The gap has no such Tag. Give the sector a Tag in UDB, or pick the right one.
Door opens the wrong way / from the wrong face	Check the hinge and direction in the preview; the arc/arrow show the real motion.
Clockwise swing doesn't close	A right swing stays open by design (auto-closing it would need ACS); use left swing.
Leaf clips into the wall as it slides	Heed the slide-overlap warning, or slide toward a wider neighbour.
Walk-over door does nothing	Set Trigger location to a separate tagged line you actually cross.
"Polyobject number N is already used"	Click Next free to pick an unused number.
Custom sound doesn't play	Load the generated .pk3 alongside the WAD, and match the sound slot numbers.

----

I'll hope you like it.

Greetings.

----
